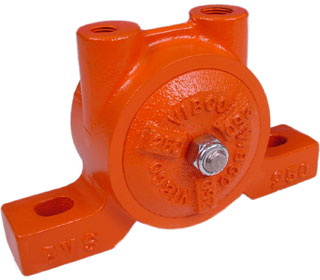

BVS-250 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

3X5CH-IN - Channel Iron (Inches)
3/8 - Exhaust Muffler
46102 - Filter/Regulator 1/4" NPT
BVM-3 - Mounting Plate for B,BV,BVS-250
86102 - Ball Valve 1/4"
1/4SV - Solenoid Valve

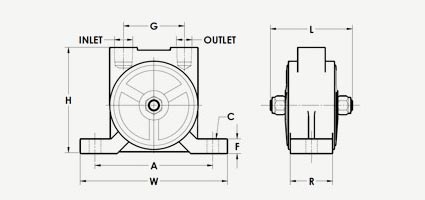

Dimensions

A 5 in
128 mm
C* 1/2 in
13 mm
L 3-9/16 in
91 mm
W 6-3/4 in
172 mm
H 3-15/16 in
101 mm
F 7/8 in
23 mm
G 2-5/16 in
59 mm
R 1-5/8 in
42 mm
INLET 1/4 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 5200
CFM 8
80 psi
VPM 7200
CFM 9
Force lbs 480
Force Newtons 2136
dB 72
Max Lbs Material in Bin 4800
Weight 6 lbs

VIBCO BVS Silent Turbine Vibrators are ideal for food, pharmaceutical, sanitary and other environments where exhaust must be piped away.  Also ideal for outdoor use.


  • Use VIBCO BVS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, are virtually silent, and are ideal for food, pharmaceutical and other clean environments.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes.
  • Patented design that is quiet and maintenance free
