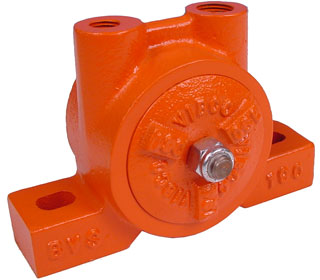

BVS-190HS - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

3/8 - Exhaust Muffler
46102 - Filter/Regulator 1/4" NPT
BVM-2 - Mounting Plate for B,BV,BVS-160/190
86102 - Ball Valve 1/4"
1/4SV - Solenoid Valve

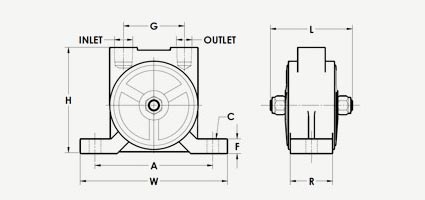

Dimensions

A 4 in
102 mm
C* 3/8 in
10 mm
L 3-3/16 in
81 mm
W 5-1/4 in
133 mm
H 3-7/16 in
87 mm
F 7/8 in
22 mm
G 1-7/8 in
48 mm
R 1-5/16 in
33 mm
INLET 1/4 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 7200
CFM 9
Force lbs 270
dB 71
Max Lbs Material in Bin 2700
Weight 4 lbs

VIBCO BVS Silent Turbine Vibrators are ideal for food, pharmaceutical, sanitary and other environments where exhaust must be piped away.  Also ideal for outdoor use.


  • Use VIBCO BVS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, are virtually silent, and are ideal for food, pharmaceutical and other clean environments.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes.
  • Patented design that is quiet and maintenance free
