BBS-100 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

86102 - Ball Valve 1/4"
1/8 - Exhaust Muffler
46102 - Filter/Regulator 1/4" NPT

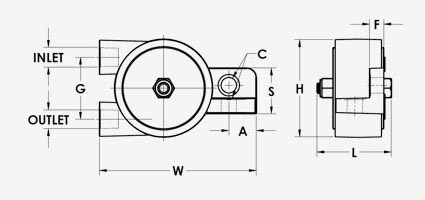

Dimensions

A 1/2 in
13 mm
C* 5/16 in
24 mm
L 1-5/8 in
41 mm
W 3-1/4 in
83 mm
H 2 in
51 mm
F 5/16 in
24 mm
G 1-1/8 in
29 mm
S 1 in
25 mm
INLET 1/8 NPT
OUTLET 1/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 12000
CFM 3.5
Force lbs 20
Force Newtons 89
dB 66
Max Lbs Material in Bin 200
Weight 1 lbs

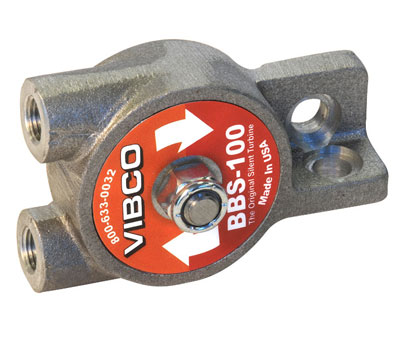

VIBCO BBS Silent Pneumatic Turbine Vibrators are an ideal choice for small bins and hoppers, chutes, and other light material handling applications.


  • Use VIBCO BBS Turbine Vibrators on any new or existing turbine vibrator installation, or to replace your old, noisy, messy piston or ball vibrators
  • VIBCO BBS Silent Pneumatic Turbine vibrators feature a tapped, threaded exhaust, aluminum housing and single-bolt-mount for easy installation.
  • Lower-cost solution
  • Virtually silent and maintenance free
