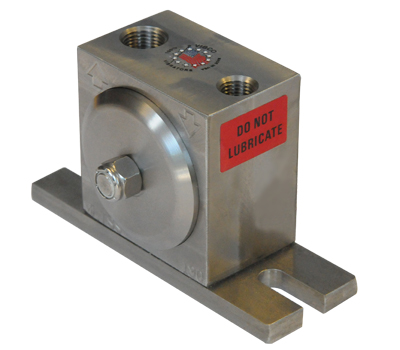

MLTSS-190 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

3/8PEM - 3/8 NPT Muff/Fil, Polyeth. Hi-Flo

46102 - Filter/Regulator 1/4" NPT

3/8SSM - Exhaust Muffler, S'Stl.

86102 - Ball Valve 1/4"

1/4SV - Solenoid Valve

Application Bulletin
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

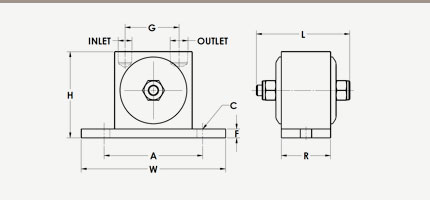

Dimensions

A	3-1/2 in
	89 mm
C*	3/8 in
	10 mm
L	3-3/8 in
	86 mm
W	5-1/8 in
	130 mm
H	3-1/16 in
	78 mm
F	5/16 in
	8 mm
G	1-15/16 in
	50 mm
R	1-3/4 in
	44 mm
INLET	1/4 NPT
OUTLET	3/8 NPT
*	Bolt Size

Tech Data

60 psi
VPM	5500
CFM	7.5
80 psi
VPM	7200
CFM	8.5
Force lbs	270
Force Newtons	1200
dB	71
Max Lbs Material in Bin	2700
