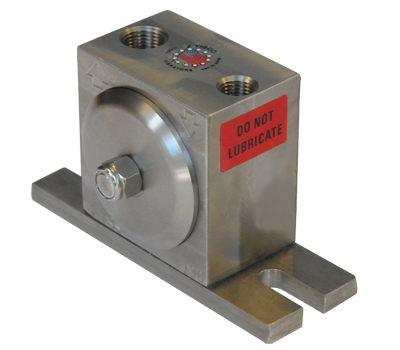

MLTSS-130 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

46102 - Filter/Regulator 1/4" NPT

1/4SV - Solenoid Valve

1/4PEM - 1/4" Npt Polyethalene Muffler

1/4SSM - Exhaust Muffler, S'Stl.

86102 - Ball Valve 1/4"

Application Bulletin
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

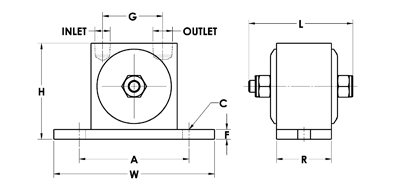

Dimensions

A	2-3/4 in
	70 mm
C*	1/4 in
	7 mm
L	1-7/8 in
	48 mm
W	3-1/4 in
	83 mm
H	2-9/16 in
	66 mm
F	5/16 in
	8 mm
G	1-7/16 in
	37 mm
R	1 in
	26 mm
INLET	1/8 NPT
OUTLET	1/4 NPT
*	Bolt Size

Tech Data

60 psi
VPM	8600
CFM	4.5
80 psi
VPM	10500
CFM	5.5
Force lbs	75
Force Newtons	334
dB	68
Max Lbs Material in Bin	750
Weight	2 lbs
