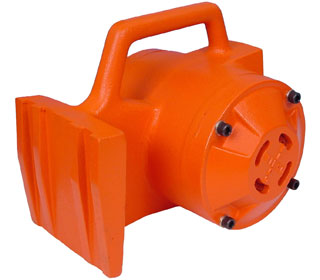

CCW-5000 - Pneumatic Turbine Railroad Car Vibrator



RECOMMENDED ACCESSORIES

36128 - Pressure Regulator
16128 - Air Filter

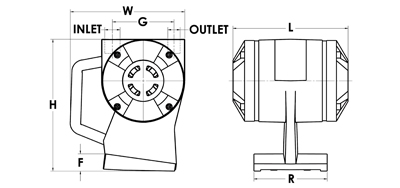

Dimensions

L 8-5/8 in
220 mm
W 8-5/8 in
220 mm
H 9-3/4 in
248 mm
F 1-1/8 in
29 mm
G 4-5/8 in
118 mm
R 5-1/2 in
140 mm
INLET 1 NPT
OUTLET 3/4 NPT

Tech Data

60 psi
VPM 5000
CFM 40
Force lbs 4000
Force Newtons 17996
80 psi
VPM 7200
CFM 50
Force lbs 7000
Force Newtons 31143
dB 78
Max Lbs Material in Bin 70000
Weight 58 lbs

VIBCO CCW-5000 Heavy Duty Pneumatic Turbine Vibrators are your ideal choice for unloading railroad hopper cars - up to 7,000 lbs of force to unload virtually any material!


Watch a VIBCO Railroad Car Vibrators Live Action Video Now
  • Use the VIBCO CCW-5000 for "after" vibration to clean out cement, sugar, flour, chemical salts, corn grits, arsenic, barley, hops, carbon black, borax, flouride, gypsum, sodic sulphate, peanuts, sodium nitrate, semolina, tri-sodium phosphate and similar materials
  • Use the VIBCO CCW-5000 to unload salts, molasses, iron ire, malt, potash, bauxite, calcium carbide, crushed marble, and similar materials
  • The only vibrators on the market to offer high force output with virtually silent operation
  • Patented design does not require lubrication and is virtually maintenance free
