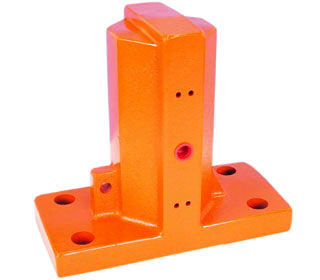

55-3S - Piston Vibrator



RECOMMENDED ACCESSORIES

46124 - Filter/Regulator 1/2" NPT
PM-13 - Mounting Channel For 55-3
1/2SV - Solenoid Valve
26124 - 1/2" Inline Lubricator
86124 - Ball Valve 1/2"

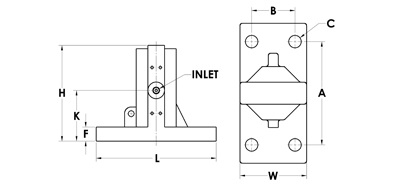

Dimensions

A 7-3/4 in
197 mm
B 3-1/4 in
83 mm
C* 7/8 in
23 mm
L 10-1/2 in
267 mm
W 5 in
128 mm
H 9-7/16 in
240 mm
F 1-1/8 in
29 mm
K 4-7/8 in
124 mm
INLET 3/8 NPT
* Bolt Size

Tech Data

40 psi
VPM 1650
CFM 18
60 psi
VPM 1950
CFM 25
80 psi
VPM 2300
CFM 30
Max Lbs Material in Bin 8000-20000
Weight 52 lbs

High Impact Choice


VIBCO Piston Vibrators provide high impact and efficient energy transfer to ensure a smooth flow of material through bins, chutes, weigh batchers and other bulk material applications. Ideal for heavy industry, mining, chemical plants, plastics, manufacturing, foundries and paper plants, VIBCO's Pneumatic Piston Vibrators are reliable, durable, and guaranteed to perform.

VIBCO is the only vibrator manufacturer that offers One-Piece design and All-Steel models of flange-mounted piston vibrators in standard and silent models. VIBCO's Silent Piston Vibrators are air-cushioned to minimize noise while still providing the necessary force. We also offer light-weight, low cost "Big Red" End-Mounted Piston Vibrators and continuous duty High Energy Impactors.

All VIBCO Piston Vibrators require lubricated air.
