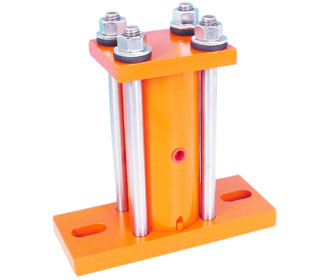

50-2LS - Piston Vibrator



RECOMMENDED ACCESSORIES

PM-4 - Mounting Channel For 50-2
46123 - Filter/Regulator 3/8" NPT
3/8SV - Solenoid Valve
26123 - 3/8" Inline Lubricator
86123 - Ball Valve 3/8"

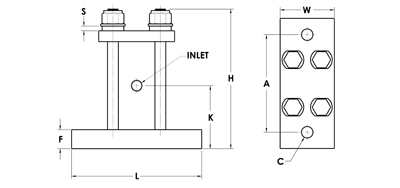

Dimensions

A 6 in
153 mm
C* 3/4 in
20 mm
L 9 in
229 mm
W 3-1/2 in
89 mm
H 9-3/8 in
239 mm
F 7/8 in
23 mm
S 5/8 in
16 mm
INLET 1/4 NPT
* Bolt Size

Tech Data

40 psi
VPM 950
CFM 17
60 psi
VPM 1200
CFM 26
80 psi
VPM 1500
CFM 31
Max Lbs Material in Bin 4000-10000
Weight 26 lbs


VIBCO MODEL 50 PISTON VIBRATORS


The perfect choice for the toughest material flow problems - sticky, high-moisture, and coarse materials are no match for the high impact, linear force of a VIBCO Model 50 Piston Vibrator.   Read a VIBCO Piston Vibrator customer story


Use VIBCO Model 50 Piston Vibrators on bins, chutes, and weigh batchers. Compact powdered and viscous materials in containers and forms; activate screens and precipitators.


VIBCO Model 50 Vibrators are used in thousands of applications in mining, chemical, plastics, concrete products, foundry, steel and paper industries. See how VIBCO users solve material flow problems.
