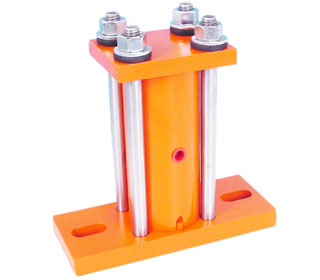

50-2L - Piston Vibrator



RECOMMENDED ACCESSORIES

3/8SV - Solenoid Valve
PM-4 - Mounting Channel For 50-2
86123 - Ball Valve 3/8"
26123 - 3/8" Inline Lubricator
46123 - Filter/Regulator 3/8" NPT

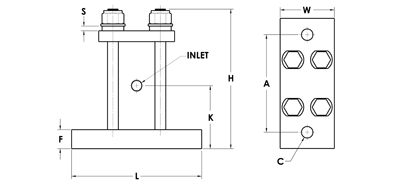

Dimensions

A 6 in
153 mm
C* 3/4 in
20 mm
L 9 in
229 mm
W 3-1/2 in
89 mm
H 9-3/8 in
239 mm
F 7/8 in
23 mm
S 5/8 in
16 mm
INLET 1/4 NPT
* Bolt Size

Tech Data

40 psi
VPM 1600
CFM 17
60 psi
VPM 2000
CFM 26
80 psi
VPM 2400
CFM 31
Max Lbs Material in Bin 8000-20000
Weight 22 lbs


VIBCO MODEL 50 PISTON VIBRATORS


The perfect choice for the toughest material flow problems - sticky, high-moisture, and coarse materials are no match for the high impact, linear force of a VIBCO Model 50 Piston Vibrator.   Read a VIBCO Piston Vibrator customer story


Use VIBCO Model 50 Piston Vibrators on bins, chutes, and weigh batchers. Compact powdered and viscous materials in containers and forms; activate screens and precipitators.


VIBCO Model 50 Vibrators are used in thousands of applications in mining, chemical, plastics, concrete products, foundry, steel and paper industries. See how VIBCO users solve material flow problems.


Long Stroke Piston


The long stroke piston on this unit gives you a  larger impact to move fluffy, low density and wet or sticky materials. The 50-L model is especially suited for packaging and screening because the extra-long bodies give high amplitude, high force and low frequency vibration. Available in 2” and 3” piston sizes. Model 50-LS - Air-Cushioned Model. Silent models are also available with silencer & dustproofer.
