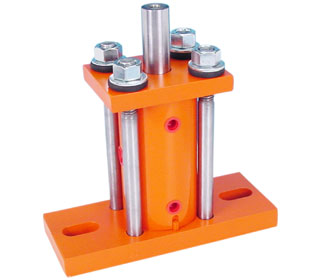

50-2EP - Piston Vibrator



RECOMMENDED ACCESSORIES

46123 - Filter/Regulator 3/8" NPT
3/8SV - Solenoid Valve
PM-4 - Mounting Channel For 50-2
86123 - Ball Valve 3/8"
26123 - 3/8" Inline Lubricator

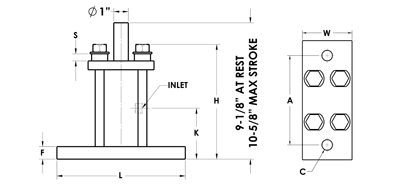

Dimensions

A 6 in
153 mm
C* 3/4 in
20 mm
L 9 in
229 mm
W 3-1/2 in
89 mm
H 8-1/8 in
207 mm
F 7/8 in
23 mm
S 1/2 in
13 mm
INLET 1/4 NPT
* Bolt Size

Tech Data

40 psi
VPM 1950
CFM 7.5
60 psi
VPM 2400
CFM 12
80 psi
VPM 3000
CFM 15
Max Lbs Material in Bin 1000-4000
Weight 21 lbs


VIBCO MODEL 50 PISTON VIBRATORS


The perfect choice for the toughest material flow problems - sticky, high-moisture, and coarse materials are no match for the high impact, linear force of a VIBCO Model 50 Piston Vibrator.   Read a VIBCO Piston Vibrator customer story


Use VIBCO Model 50 Piston Vibrators on bins, chutes, and weigh batchers. Compact powdered and viscous materials in containers and forms; activate screens and precipitators.


VIBCO Model 50 Vibrators are used in thousands of applications in mining, chemical, plastics, concrete products, foundry, steel and paper industries. See how VIBCO users solve material flow problems.


Extended Piston


Use VIBCO Extended Piston Vibrators on portable tote bins or hoppers. They have a 5/8” stroke and threaded extension for attaching to rods or bumpers. The air cushioned piston operates quietly at 2400 VPM, 60 PSI & 8 CFM.  Need a vibrator for tote bins? Watch this video of our New Stik-It™ Portable Vibrator Mount
