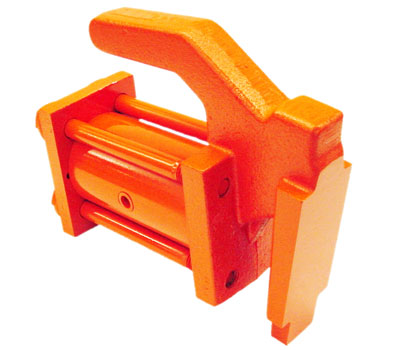

42-3 - Piston Vibrator



RECOMMENDED ACCESSORIES

26123 - 3/8" Inline Lubricator
UWF-1 - Female Hook Wedge For Wedge Form
46123 - Filter/Regulator 3/8" NPT

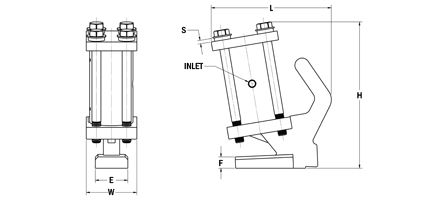

Dimensions

L 8-9/16 in
217 mm
W 6 in
152 mm
H 13-9/16 in
344 mm
E 2-1/4 in
58 mm
F 3/4 in
20 mm
S 11/16 in
17 mm
INLET 1/2 NPT

Tech Data

40 psi
VPM 2700
CFM 18
60 psi
VPM 3200
CFM 25
80 psi
VPM 3800
CFM 30
Max Lbs Material in Bin 10000-30000
Weight 55 lbs

High Impact Choice


VIBCO Piston Vibrators provide high impact and efficient energy transfer to ensure a smooth flow of material through bins, chutes, weigh batchers and other bulk material applications. Ideal for heavy industry, mining, chemical plants, plastics, manufacturing, foundries and paper plants, VIBCO's Pneumatic Piston Vibrators are reliable, durable, and guaranteed to perform.

VIBCO is the only vibrator manufacturer that offers One-Piece design and All-Steel models of flange-mounted piston vibrators in standard and silent models. VIBCO's Silent Piston Vibrators are air-cushioned to minimize noise while still providing the necessary force. We also offer light-weight, low cost "Big Red" End-Mounted Piston Vibrators and continuous duty High Energy Impactors.

All VIBCO Piston Vibrators require lubricated air.
