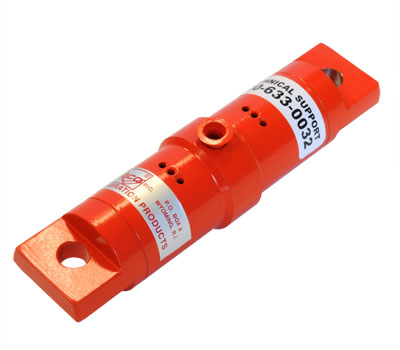

30-1 - Piston Vibrator



RECOMMENDED ACCESSORIES

26102 - 1/4" Inline Lubricator
46102 - Filter/Regulator 1/4" NPT

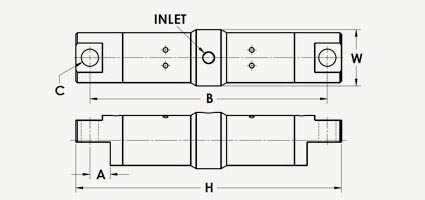

Dimensions

A 1/2 in
13 mm
B 6-3/8 in
162 mm
C* 3/8 in
10 mm
W 1-5/8 in
42 mm
H 6-9/16 in
167 mm
INLET 1/8 NPT
* Bolt Size

Tech Data

40 psi
VPM 6500
CFM 3.5
60 psi
VPM 9000
CFM 4
80 psi
VPM 11000
CFM 5
Max Lbs Material in Bin 200-400
Weight 5 lbs

High Impact Choice


VIBCO Piston Vibrators provide high impact and efficient energy transfer to ensure a smooth flow of material through bins, chutes, weigh batchers and other bulk material applications. Ideal for heavy industry, mining, chemical plants, plastics, manufacturing, foundries and paper plants, VIBCO's Pneumatic Piston Vibrators are reliable, durable, and guaranteed to perform.

VIBCO is the only vibrator manufacturer that offers One-Piece design and All-Steel models of flange-mounted piston vibrators in standard and silent models. VIBCO's Silent Piston Vibrators are air-cushioned to minimize noise while still providing the necessary force. We also offer light-weight, low cost "Big Red" End-Mounted Piston Vibrators and continuous duty High Energy Impactors.

All VIBCO Piston Vibrators require lubricated air.

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.
