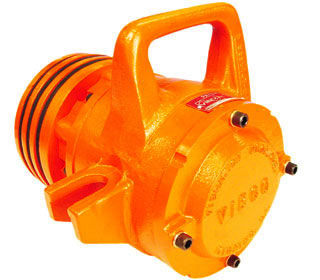

HL-3000 - Hydraulic Turbine Vibrator



RECOMMENDED ACCESSORIES

LC-1 - Vibrator Mounting Bracket For Large L&C
SC-2C2 - Safety Cable
6X10.5CH-IN - Channel Iron (Inches)

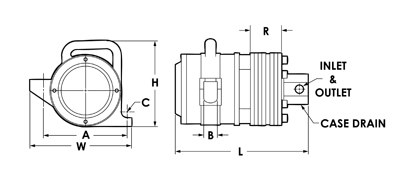

Dimensions

A 7-3/4 in
197 mm
B 1-1/16 in
27 mm
C* 1 in
26 mm
L 11-1/4 in
286 mm
W 8-3/4 in
223 mm
H 8-3/4 in
223 mm
R 2-13/16 in
50 mm
INLET 3/4-16 SAE 8
OUTLET 3/4-16 SAE 8
Case Drain 7/16-20 SAE 4
* Lug Hook Width

Tech Data

Force lbs 3400
Force Newtons 15100
dB 76
VPM 5000
GPM 3.2
Average Running Pressure 1000 PSI
Maximum Inlet Pressure 3000 PSI
Weight 39 lbs

Reliable, Trouble-Free Operation


VIBCO offers a complete line of hydraulic vibrators to suit your needs. Our hydraulic vibrators operate in any position and are not affected by dirty, muddy or wet locations. They can operate on pressures up to 3000 PSI — making VIBCO Hydraulic Vibrators ideal for use with construction equipment, concrete forming equipment and a wide variety of applications.
