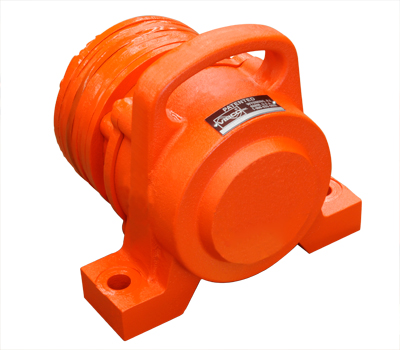

HF-1500 - Hydraulic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

PFM-1 - Mounting Plate for PF/HF-800,1200,1500

6X10.5CH-IN - Channel Iron (Inches)

Quick Reference Guides

Catalog

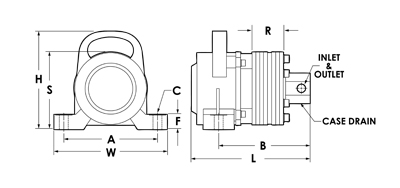

Dimensions

A	8-1/2 in
	216 mm
B	8-1/2 in
	216 mm
C*	3/4 in
	20 mm
L	11-1/4 in
	286 mm
W	10-3/8 in
	264 mm
H	8-3/4 in
	223 mm
F	1-3/8 in
	35 mm
R	2-13/16 in
	50 mm
S	7-3/8 in
	188 mm
INLET	3/4-16 SAE 8
OUTLET	3/4-16 SAE 8
Case Drain	7/16-20 SAE 4
*	Bolt Size

Tech Data

VPM	4000
Force lbs	2000
Force Newtons	8900
dB	76
GPM	2.6
Average Running Pressure	900 PSI
Maximum Inlet Pressure	3000 PSI
Weight	42 lbs

Reliable, Trouble-Free Operation

VIBCO offers a complete line of hydraulic vibrators to suit your needs. Our hydraulic vibrators operate in any position and are not affected by dirty, muddy or wet locations. They can operate on pressures up to 3000 PSI — making VIBCO Hydraulic Vibrators ideal for use with construction equipment, concrete forming equipment and a wide variety of applications.

Delivered On Time... Your Time

VIBCO understands that long lead times cost you money — that's why all of VIBCO's standard products ship the same day or very next day we receive your order. We also make sure that you receive the factory support that you need by having live, friendly customer service agents available to assist you from 7:30am — 8:00pm EST, and 24 hour technical support.

Made In The USA 50 Years

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

100% Manufactured in the USA
Strict quality standards
Available and in-stock
Same day or next day shipping
Made with pride since 1962

Not Sure? How can we help you?

Customer Testimonials

I just thought I would let you know your web site has been very helpful. I picked up a HF-1500 hydraulic vibrator and mounted it on my BBI shavings spreader for my poultry farm. While spreading bedding for my barns each load I would have to jump off the moving tractor and knock down the bridging shavings. I was trying to figure out a way of steering the tractor from the spreader but then I thought I need something that will keep me and my employee’s from getting off the tractor in the first place. It’s really not safe jumping on and off a moving tractor even if it’s moving slow. So while I was on my tractor spreading I was on my smart phone and came across your web site. It was just what I needed. It’s going to work great and I look forward to a much easier and productive time spreading my 50 loads of shavings next setup time. Thanks from Oregon.

- Eric S.
