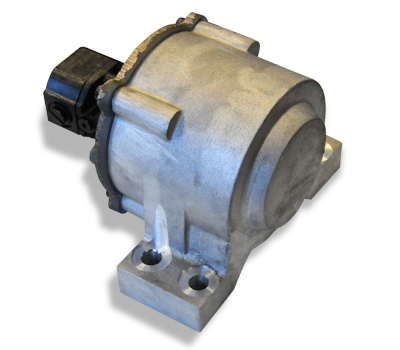

HLF-5000 - Hydraulic Turbine Vibrator

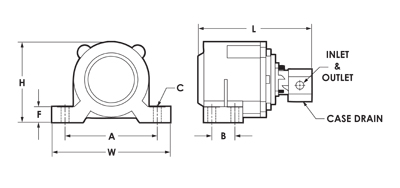

A 8 in
204 mm
B 2 in
51 mm
C* 3/4 in
20 mm
L 9-13/16 in
250 mm
W 10-1/4 in
261 mm
H 7 in
178 mm
INLET 3/4-16 SAE 8
OUTLET 3/4-16 SAE 8
Case Drain 7/16-20 SAE 4
* Bolt Size

Tech Data

VPM 4000
Force lbs 4500
Force Newtons 20016
dB 80
GPM 2.5
Average Running Pressure 1500 PSI
Maximum Inlet Pressure 4000 PSI
Weight 44 lbs

Reliable, Trouble-Free Operation

VIBCO offers a complete line of hydraulic vibrators to suit your needs. Our hydraulic vibrators operate in any position and are not affected by dirty, muddy or wet locations. They can operate on pressures up to 3000 PSI — making VIBCO Hydraulic Vibrators ideal for use with construction equipment, concrete forming equipment and a wide variety of applications.
