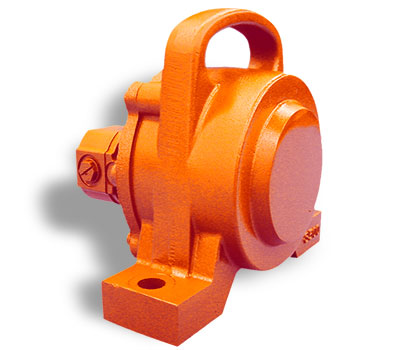

HLF-3500 - Hydraulic Turbine Vibrator



RECOMMENDED ACCESSORIES

SC-2 - Safety Cable
1500PF38K - Mounting Kit (DC-3500, HLF-3500)
6X10.5CH-IN - Channel Iron (Inches)

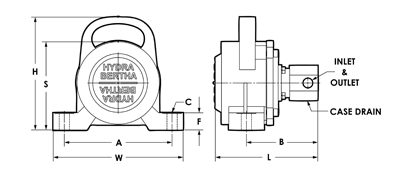

Dimensions

A 8-1/2 in
216 mm
B 5-3/8 in
137 mm
C* 3/4 in
20 mm
L 8-9/16 in
218 mm
W 10-1/4 in
261 mm
H 9 in
229 mm
F 1-3/8 in
35 mm
S 7-3/8 in
188 mm
INLET 3/4-16 SAE 8
OUTLET 3/4-16 SAE 8
Case Drain 7/16-20 SAE 4
* Bolt Size

Tech Data

VPM 4000
Force lbs 3500
Force Newtons 15600
dB 78
GPM 2.5
Average Running Pressure 1200 PSI
Maximum Inlet Pressure 3000 PSI
Weight 34 lbs

Reliable, Trouble-Free Operation


VIBCO offers a complete line of hydraulic vibrators to suit your needs. Our hydraulic vibrators operate in any position and are not affected by dirty, muddy or wet locations. They can operate on pressures up to 3000 PSI — making VIBCO Hydraulic Vibrators ideal for use with construction equipment, concrete forming equipment and a wide variety of applications.

Delivered On Time... Your Time


VIBCO understands that long lead times cost you money — that's why all of VIBCO's standard products ship the same day or very next day we receive your order. We also make sure that you receive the factory support that you need by having live, friendly customer service agents available to assist you from 7:30am — 8:00pm EST, and 24 hour technical support.

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
