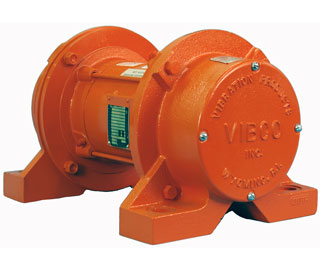

4PX-2000 - Explosion Proof Vibrator



RECOMMENDED ACCESSORIES

VMX-3 - Mounting Bracket 4PX-2000
6X10.5CH-IN - Channel Iron (Inches)

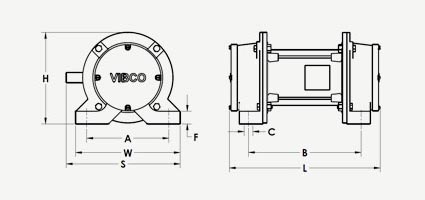

Dimensions

A 10 in
255 mm
B 13-11/16 in
348 mm
C* 1 in
26 mm
L 18 in
458 mm
W 13-7/8 in
353 mm
H 11-1/8 in
283 mm
F 1-1/2 in
39 mm
* Bolt Size

Tech Data

VPM 1800
HP 1-1/4
Phase 3
Volt 230/460
Amp 3.2/1.6
Force lbs 625-2000
Force Newtons 2780-8896
dB 72
Weight 201 lbs

Trust VIBCO Quality and Engineering for your Explosion-Proof Environment


  • American-made explosion-proof motor
  • Adjustable eccentric settings allow you to fine tune force output
  • Some models feature oversized roller bearings to ensure extra long life

Rated for Class I, Grp. D, Class II, Grp. F & G, Div, 1 & 2.

UL listed - CSA Certified
