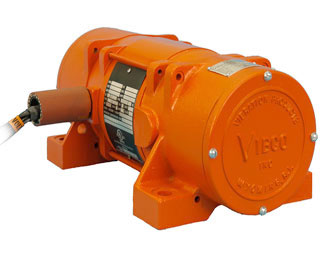

2PX-450-3 - Explosion Proof Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

SC-4 - Safety Cable

4X6.25CH-IN - Channel Iron (Inches)

VMX-2 - Mounting Bracket (2PX-450;4PX-700)

Quick Reference Guides
Complete Service Manual

Catalog

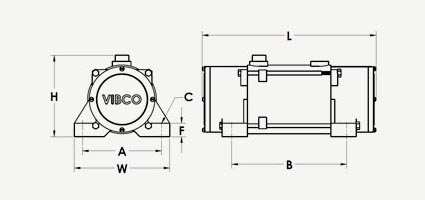

Dimensions

A	6-5/8 in
	169 mm
B	9-3/4 in
	248 mm
C*	5/8 in
	16 mm
L	14-1/2 in
	369 mm
W	11-1/4 in
	286 mm
H	6-1/8 in
	156 mm
F	1-3/16 in
	31 mm
*	Bolt Size

Tech Data

VPM	3600
HP	1/2
Phase	3
Volt	230/460
Amp	1.6/0.8
Force lbs	110-900
Force Newtons	489-4003
dB	62
Weight	63 lbs

Trust VIBCO Quality and Engineering for your Explosion-Proof Environment

American-made explosion-proof motor
Adjustable eccentric settings allow you to fine tune force output
Some models feature oversized roller bearings to ensure extra long life

Rated for Class I, Groups C & D, Div. 1. Temp. Code T3

Made In The USA 50 Years

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

100% Manufactured in the USA
Strict quality standards
Available and in-stock
Same day or next day shipping
Made with pride since 1962
